I would like to thank the buyer, the bidders, the commenters, the viewers and the MB market.

Thank you

Alright everybody, the time has come! Last hour for bidding.

Let's make it happen, good luck and happy Sunday!

:)

@thegreg92
Yes the installation instructions are in English. They are included with the sale.

Installation of this EFI kit is very straight forward. Since the kit is well done and it is reversible if one wanted to remove the kit to keep it and return back to stock to sell the car per example.

@AKJeeper
Yes it does. This kit does not touch the EGR. It only removes the factory mechanical fuel injection and replaces it.

A little more info about what included in this kit!

It includes:

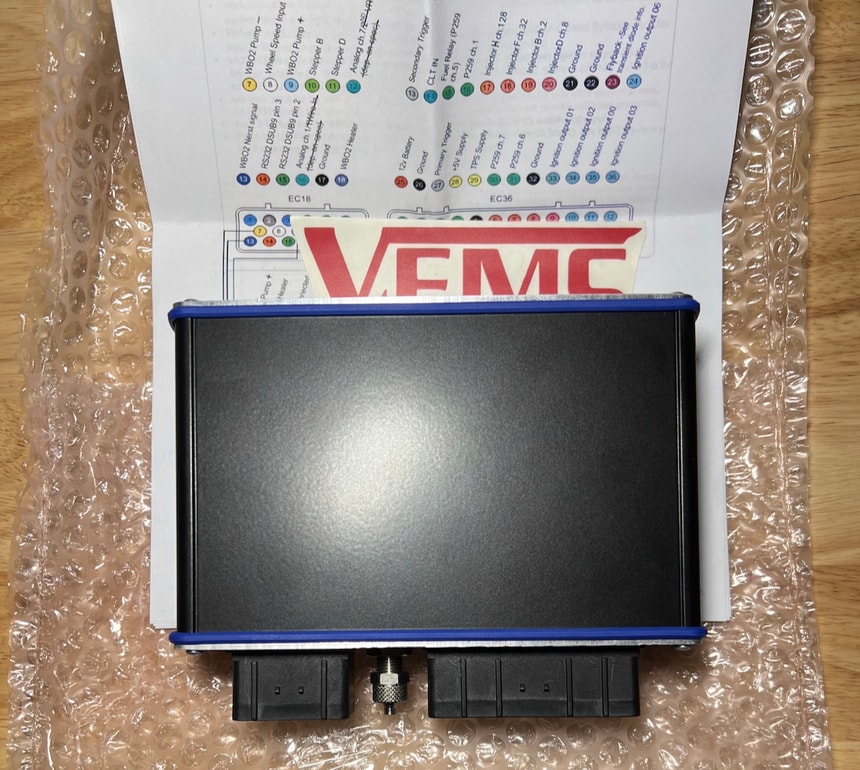

Powerful engine management system with Bluetooth connection.
⦁ Multiple outputs for controlling electronic devices like aftermarket cooling fan or any other relay switched devices.
⦁ Advanced self-tuning function.
⦁ Engine data monitoring/data log with Android devices.
⦁ Engine control unit capable for any performance modification in future.
⦁ Comes with base map.

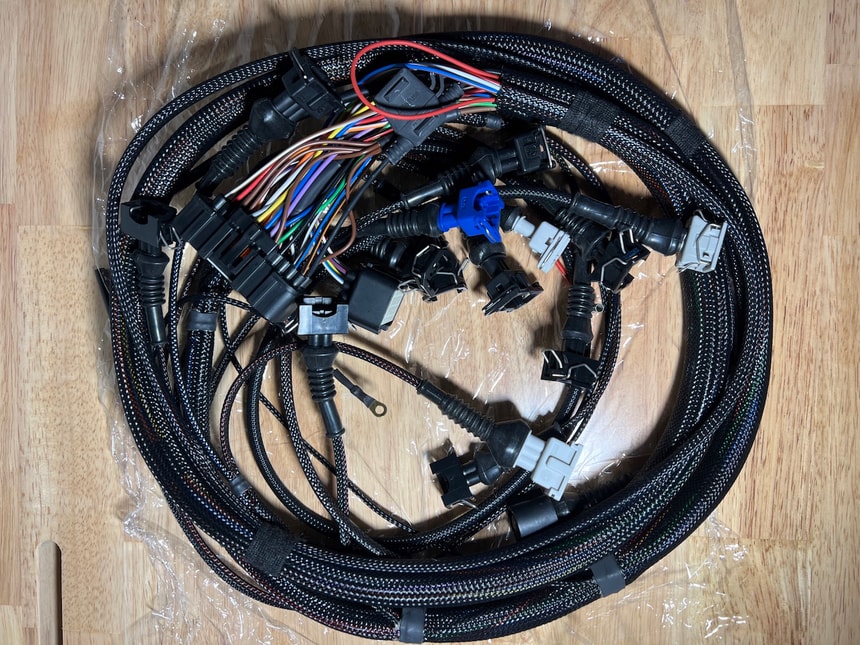

Handcrafted engine wiring harness – logical layout with different types/colors of connectors you can not mismatch. Only 2 connections to chassis side – RPM output (bolted) and ignition power (pin into original OVPR (over voltage protection relay) socket) and done!

Sensors:
⦁ Crankshaft position with mounting bracket.
⦁ Coolant temperature sensor.
⦁ Intake temperature sensor.
⦁ Manifold air pressure sensor (inside ECU).
⦁ Throttle position sensor with special adapter for MB throttles.
⦁ Wide band oxygen (lambda) sensor.

Mechanical components:

⦁ Adapter between original air filter housing and throttle body.
⦁ Idle speed control motor with hoses/fittings to EGR port.
⦁ Ignition coils with mounting bracket and spark plug cables.
⦁ Trigger wheel (mounted inside of harmonic balancer).

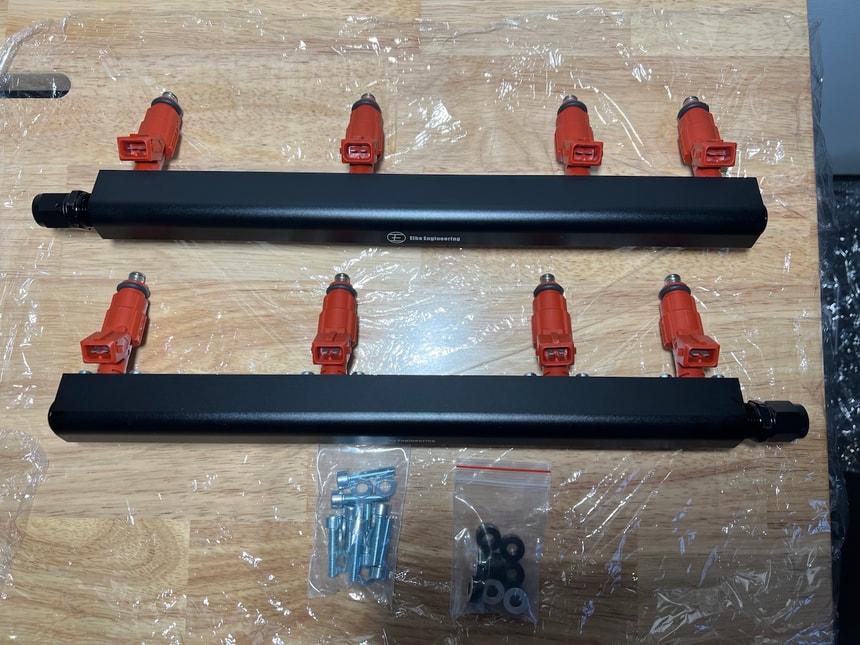

⦁ Fuel rails with 8pcs of injectors and mounting accessories.
⦁ Fuel pressure regulator with special designed billet housing.
⦁ Compact anodized aluminum fuel fittings with black nylon braided Teflon hoses.
⦁ “Olive” fuel fittings for connecting chassis side fuel lines.
⦁ Distributor block off plug.

@thegreg92

The EFI kit offered here is designed for Mercedes Benz M116 / M117 engines that use Bosch K Jetronic (CIS) or Bosch KE Jetronic (CIS-E) fuel injection systems. 1975-1992

Hello everyone,

Thank you for bidding and viewing this kit.

This EFI kit is absolutely top notch and very high quality. It was only removed from the original box to take pictures for this auction. it's never been installed and brand new.

I saw a 560SEC and a 560SL running an exact kit like this and was a whole different car. The tunability of this EFI kit and if you compare the very expensive original mechanical Bosch fuel injection parts that it's replacing, it makes this kit a worth while upgrade.

Today with the low quality gas or ethanol, lack of driving, wear & tear or just being old cars you have to go through the entire fuel injection system no matter the mileage. Do not forget the endless vacuum leaks and old rubber hoses.

This kit will pay for it self easily if you compare and price out all the parts of the mechanical injection... EFI help with startup, emissions, power, responsiveness and MPG's also. It is well made and installation-friendly.

Quick note, this kit is made to reuse the factory air cleaner assembly!
So, you can retain the OEM Mercedes-Benz engine bay look if wanted.

Thanks and good luck.

@Tommyd2324

Good question. Yes of course the installation instructions are included.
No problem.

This kit is a "bolt on" application and will replace the current mechanical injection on a M116/M117. It is simple to install.
